Ultrasonic flowmeter

Wide Measuring Range:Several types transducer for selection, pipe size from Dn 15 mm to Dn 6000 mm.

Classification:

Ultrasonic flowmeter

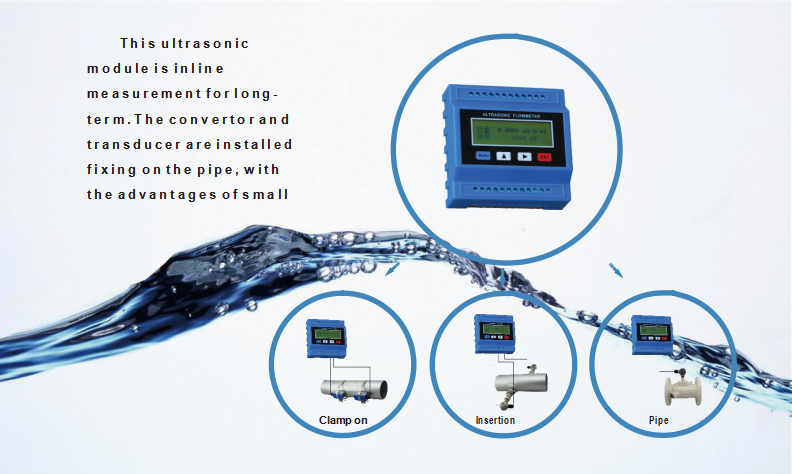

Product Introduction

开流

  High Accuracy

  Better than ±1 %

  Wide Measuring Range

  Several types transducer for selection, pipe size from Dn 15 mm to Dn 6000 mm

  High Reliability

  Adopt low voltage, multi-pulse technology to improve accuracy, useful life and reliability.

  Strong Anti- interference

  Dual- balance signal differential receiver/ driver circuit to avoid interference of converter, TV tower, high voltage l ine etc.

  Powerful Recording Function

  Automatically record the fo l l owing data:

  1. The totalizer data of the last 512 days/128 months/10 years

  2. The time and corresponding flow rate of the last 64 times of power on and off events

  3. The working status of the last 32 days

  Far t ransmission d i s tance, easy for networking

  RS485 support wireless network, connect GPRS module to accomplish wireless transmission . S u

  p p o r t H e a t M e a s u r e m e n t

  C o n n e c t t h e t e m p e r a t u r e t r a n s d u c e r , c a n f i n i s h t h e h e a t / e n e r g y m e a s u r e m e n t



  Liquid Type

  This flowmeter can be virtually applied to a wide range of measurement. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw

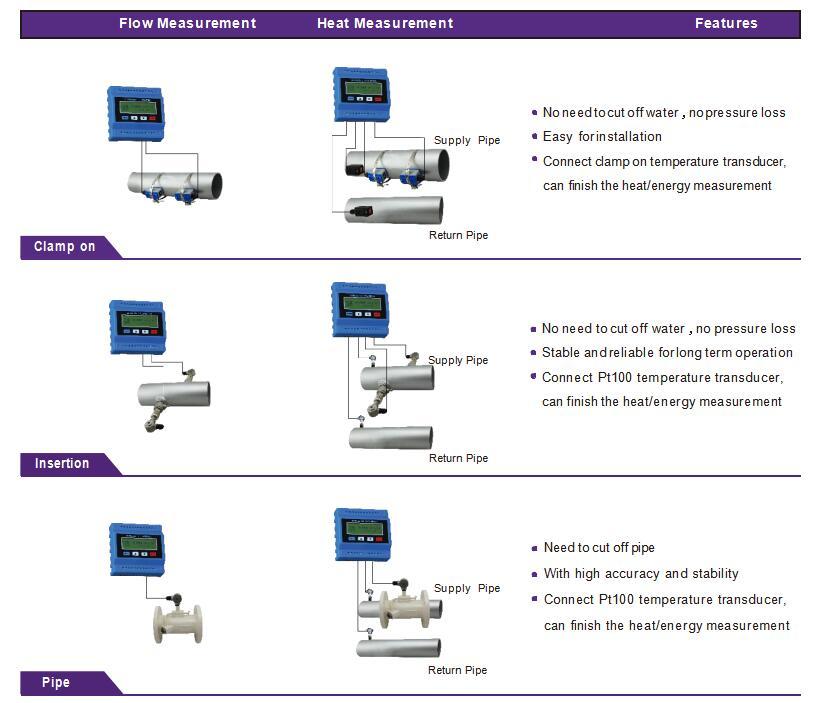

  Measuring Diagram



开流

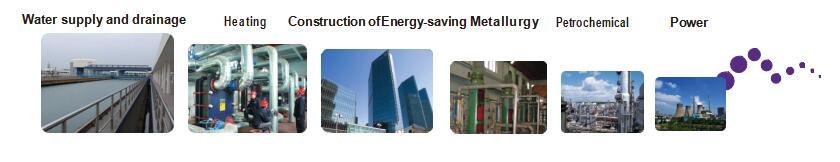

  Applications

开流

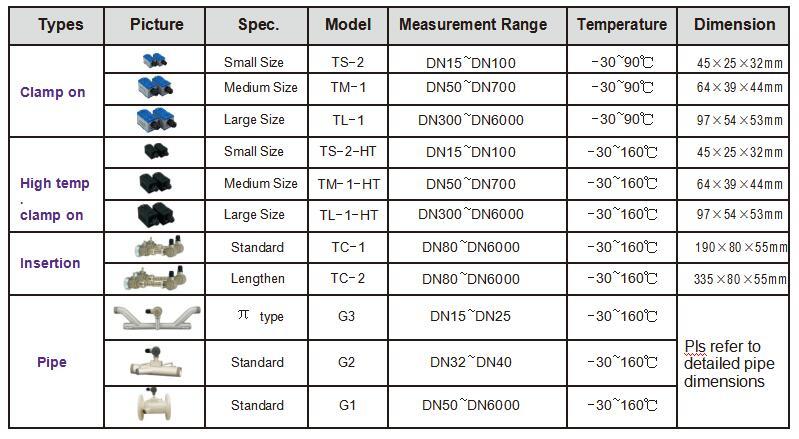

  Optional Transducers

开流

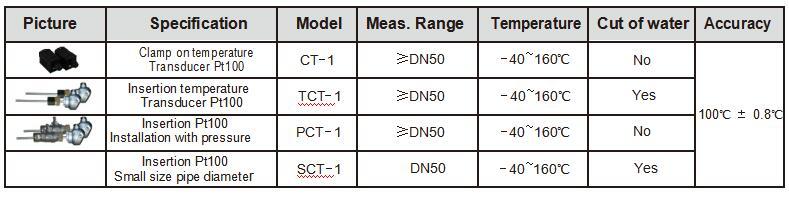

  Optional Temperature Transducers

产品

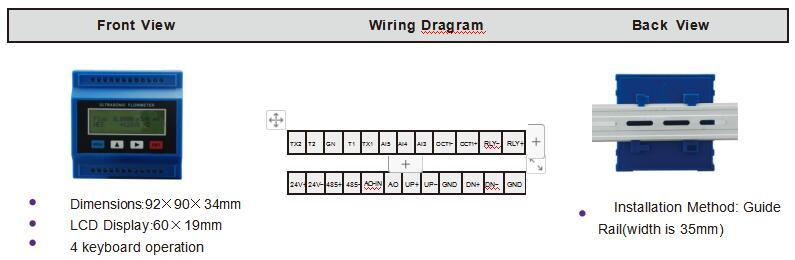

  Parts Descriptions

开流

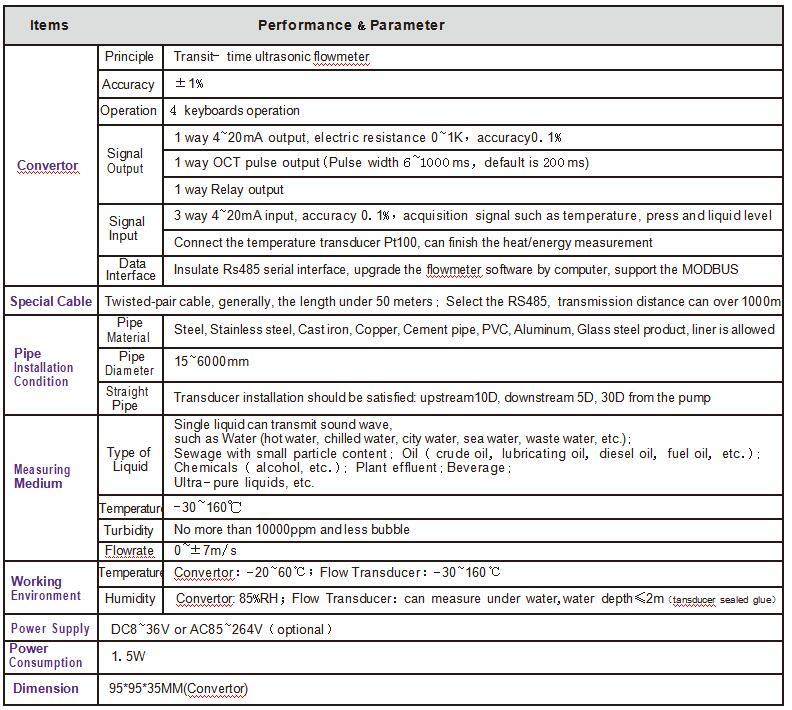

  Datasheet

开流
